Plasma Cutting

plasma cutting oxy

Drilling, Tapping and Countersinking in One Cutting System

Complete processing without additional handling

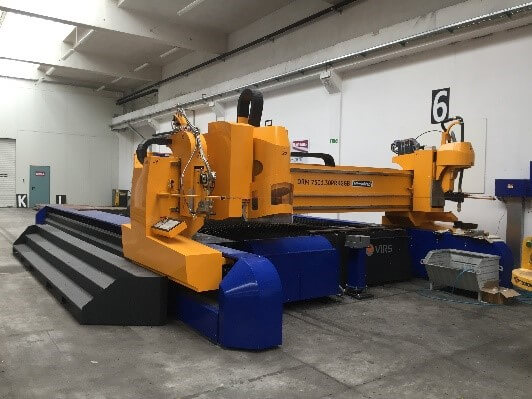

Our MicroStep® DRM cutting system combines drilling, tapping, countersinking and plasma cutting in a single machine—without compromising component quality.

The combination of these processes provides a clear advantage: components do not need to be transferred to another machine for secondary operations. There is no time-consuming handling, reclamping, repositioning or reprogramming. The complete component is produced in one continuous manufacturing process.

This integrated solution provides:

•Shorter production times

•Fewer handling operations

•No additional setup or reclamping

•Higher positional accuracy

•Reduced risk of operator errors

•Lower overall production costs

Automatic tool changes

For fast processing, the system is equipped with an eight-position tool magazine. The tools are safely protected against cutting dust and accidental damage when they are not in use.

The machine automatically selects and changes the required tool for drilling, tapping or countersinking. Once the mechanical operations have been completed, it switches to the plasma cutting tool and cuts all programmed 3D contours.

Finished in a single setup

Combining machining and plasma cutting in one system ensures precise positioning between holes, threads, countersinks and cut contours. This is particularly beneficial for complex components where accuracy and repeatability are essential.

The result is a faster and more reliable production process, with fewer operations and components that are ready for the next manufacturing stage.

Drill. Tap. Countersink. Cut. Everything completed in a single setup.

Plazma machine


OPERATION

Bevel Plasma Cuts

BEVEL PLASMA CUTS

Drilling

AUTOGEN CUTS

Drilling

DRILLING,

THREADING,

COUNTERSINKING

TABLE DIMENSIONS


7.000 x 3.000


MAXIMUM PLATE THICKNESS

1,5 ≤ d ≤ 50 mm

50 ˂ d ≤ 200 mm

8 ≤ d ≤ 160 mm

CUTTING TOLERANCES FOR OUTSIDE DIAMETER

0 / +3 mm

0 / +5 mm

-

CUTTING TOLERANCES FOR INSIDE DIAMETER

-3 / 0 mm

-5 / 0 mm

-

CUTTING TOLERANCES FOR BEVEL CUTS

1 to 3 mm / cut

-

-
