Vertical Sawing

Vertikalne tračne žage

Automatic Vertical Plate Bandsaw Cutting

Maximum material utilization. High productivity. Outstanding flexibility.

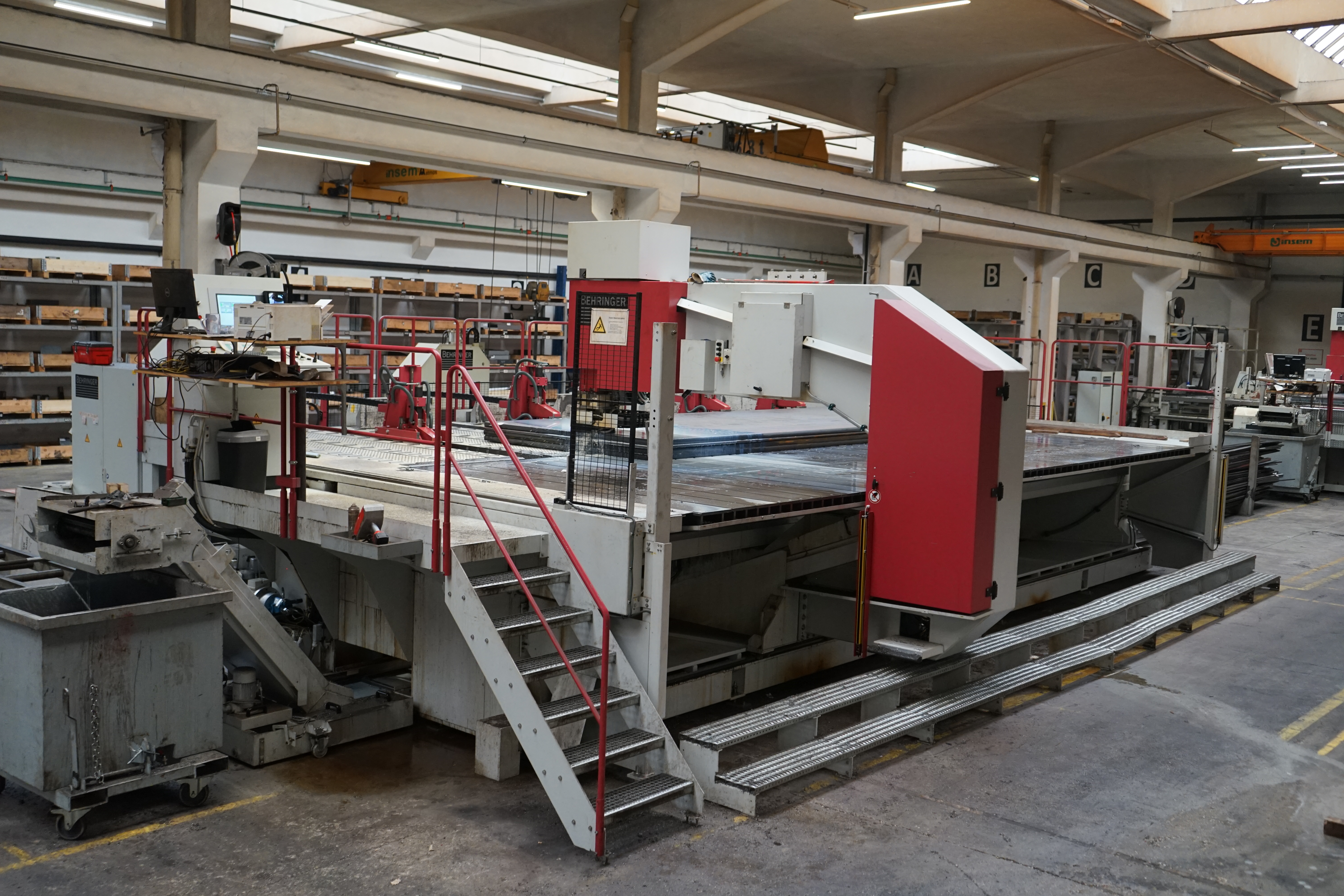

At Damatech, we use CNC-controlled high-performance vertical plate bandsaws with a rotating saw head for automatic longitudinal and cross cutting of large steel plates.

This technology enables the saw to automatically change the cutting direction and perform cuts in both X and Y directions, allowing different blanks to be efficiently produced from the same plate.

Cut in two directions. Get more from every plate.

Automatic longitudinal and cross cutting provides exceptional flexibility when processing large-format plates. Optimized cutting layouts enable better material utilization, reduced scrap and lower material costs, particularly when different part dimensions are required from the same plate. Our vertical bandsaws are especially suitable for processing demanding prehardened steel grades such as Toolox®, Hardox®, Strenx® and 42CrMo4 QT.

Carbide blades for high cutting performance

For high-performance cutting, we primarily use carbide-tipped bandsaw blades. Combined with optimized cutting parameters and modern CNC technology, they provide high cutting rates, consistent quality and excellent productivity, even when machining high-hardness steels.

Automation. Flexibility. Productivity.

Automatic positioning, a rotating saw head and CNC-controlled cutting enable efficient production with minimal manual intervention.

Combined with our many years of experience and three-shift production, this gives Damatech the flexibility and cutting capacity to complete demanding orders quickly and reliably according to individual customer requirements.

Automatic longitudinal and cross cutting. Better plate utilization. High cutting performance. Maximum flexibility.

Behringer LPS25-200-6A

Behringer LPS25-200-6A

Technical data

Cutting depth: 2.300 mm
Max. plate thickness: 250 mm
Max. plate length: 6.300 mm
Max. table load: 15.000 kg

Behringer LPS25-250-8A

Behringer LPS25-250-8A

Technical data


Cutting depth: 2.810 mm
Max. plate thicnkess: 250 mm
Max. plate lenght: 8.600 mm
Max. table load: 20.000 kg

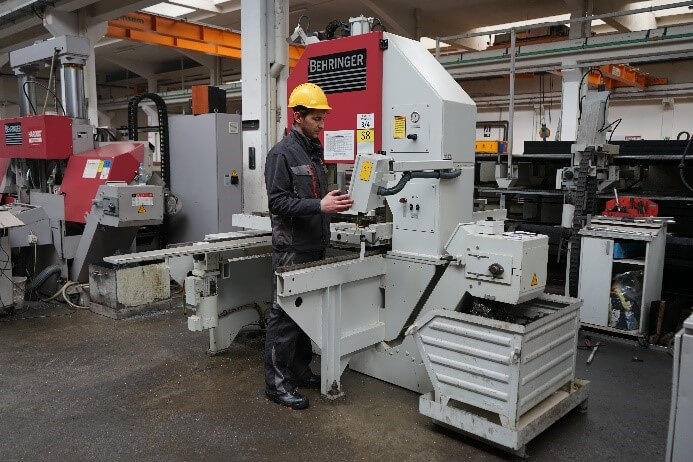

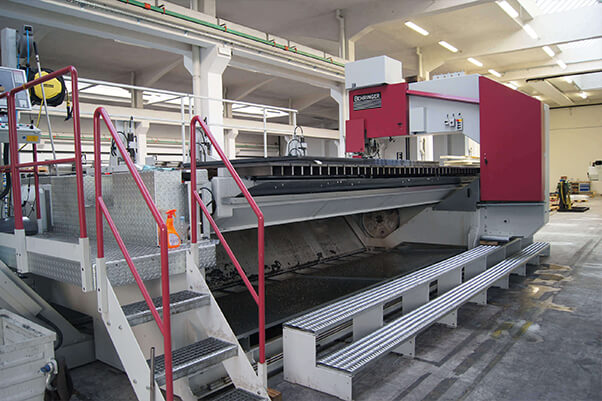

Behrninger LPS 60T

Behrninger LPS 60T

Technical data

Cutting depth: 720 mm
Max. plate thickness: 680 mm
Max. plate length: 1.250 mm
Max. table load: 3.000 kg

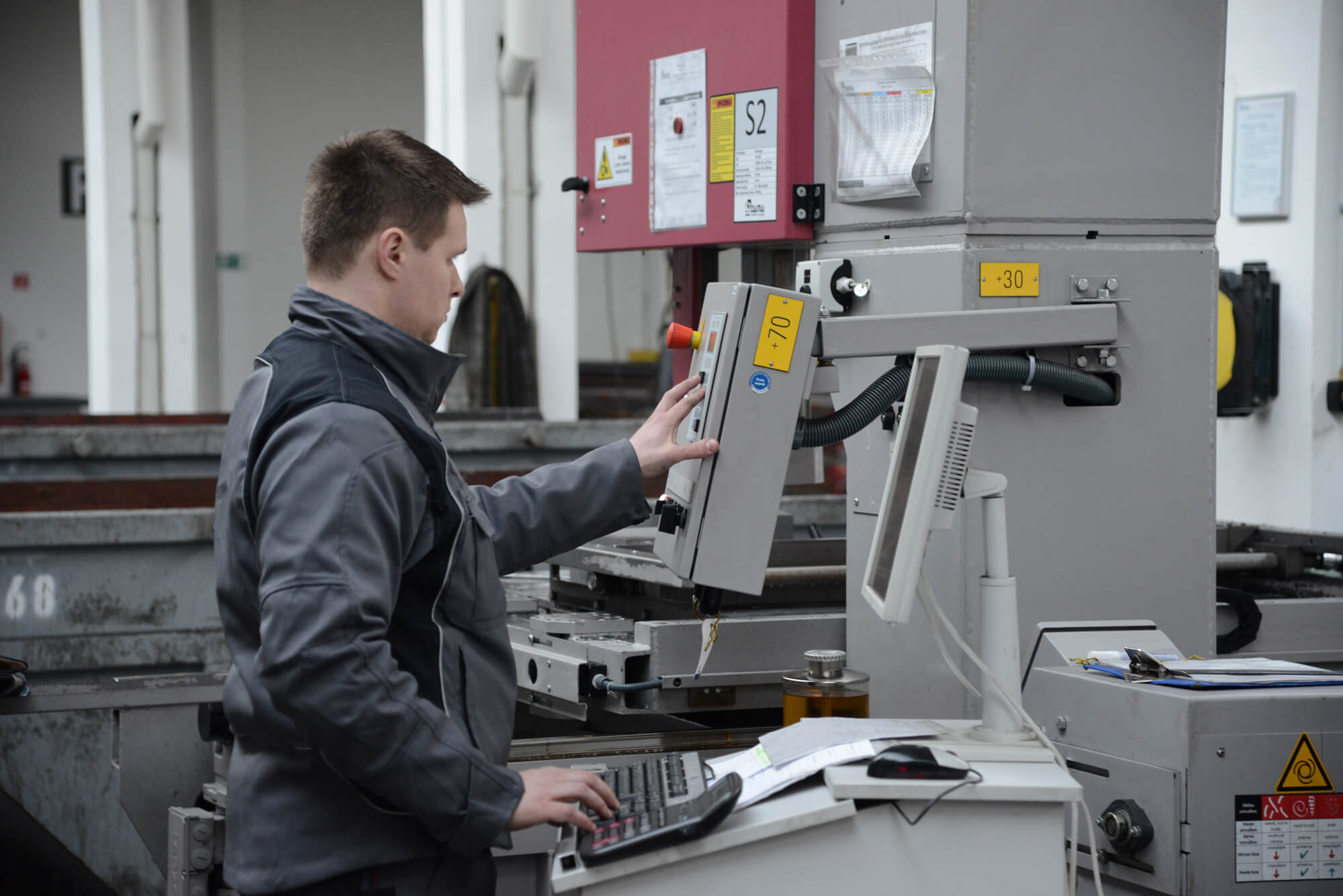

Behrninger LPS 40T1500

Behrninger LPS 40T1500

Technical data

Cutting depth: 720 mm
Max. plate thickness: 400 mm
Max. plate length: 1.540 mm
Max. table load: 3.000 kg
